"I just put it together. The power supply mounts perfectly with the zip ties. (I kinda thought the Phoenix would be quite a bit bigger and heavier, but it isnt!). What a neat, well thought out board you've designed! Kudos man. I really like it. Looks like even this old wah is going to secure fine with zip ties. Well, back to work, gonna mount some stuff! - Cheers ✌, Bill
I am very excited to be offering power supplies made by Walrus Audio. They fit beautifully on all of the Holeyboards. I've chosen them because when I plug them in I feel confident and solid , every time. You can use ANY Power Supply however, the Holeyboard Pedalboards all fit virtually any power supply with no additional parts, you just zip it on. Quick, Tight and Fast.

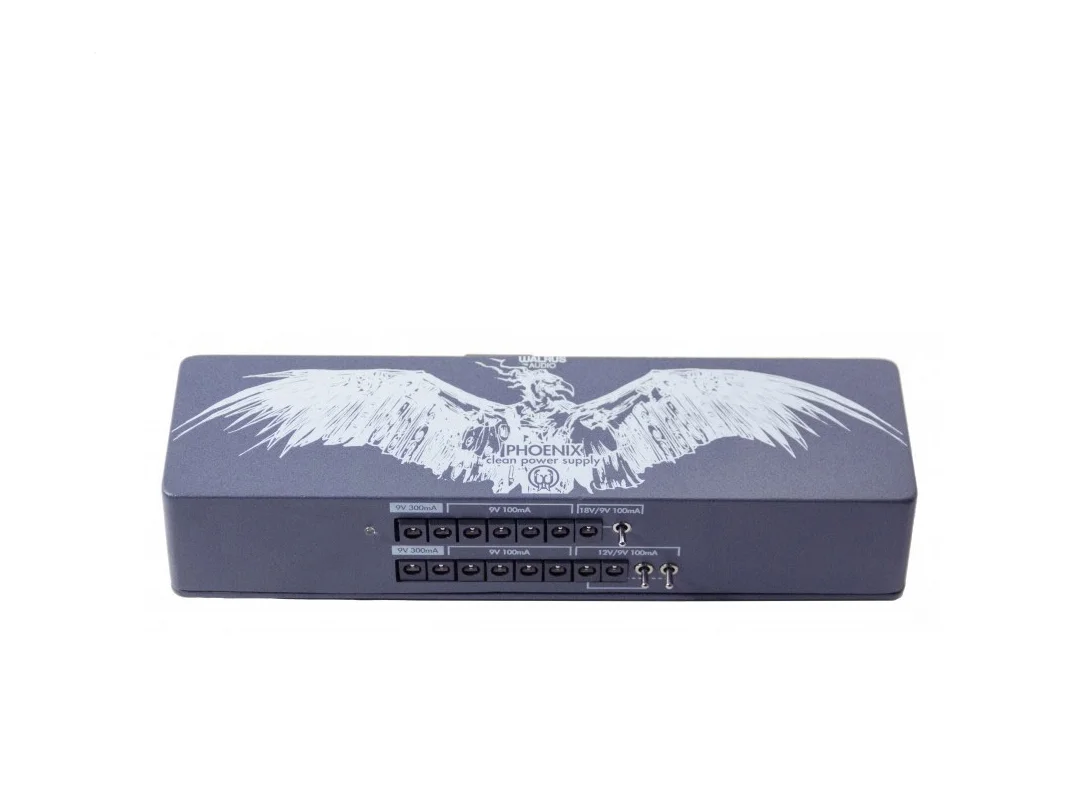

PHOENIX 120V Clean Power Supply
Easily attaches with Zipties to the Holeyboards. The Phoenix Clean Power Supply is a 15-output isolated power supply, utilizing two internal custom wound toroidal transformers to provide the highest noise filtering and cleanest power, giving artists the purest sound in their signal chain possible.
All outputs are isolated. There are 15 total outputs:
- Four 9V, 300mA (can power the larger digital pedals like the Strymon BigSky and Timeline)
- Eight 9V, 100mA
- Two outputs include a toggle switch option to run 9V or 12V, 100mA
- One output includes a toggle switch option for 9V or 18V, 100mA
- One Courtesy Outlet
- The Phoenix comes in a durable midnight blue texture enclosure and can more than hold up to the demands of touring.
- Exact size is 9.75” long, 2.6” wide, 2” high.
- This unit comes with 15 – 2.1mm barrel black power cables, 2 – 2.5mm to 2.1mm (red to black) line 6 cables) and a detachable IEC Cable.

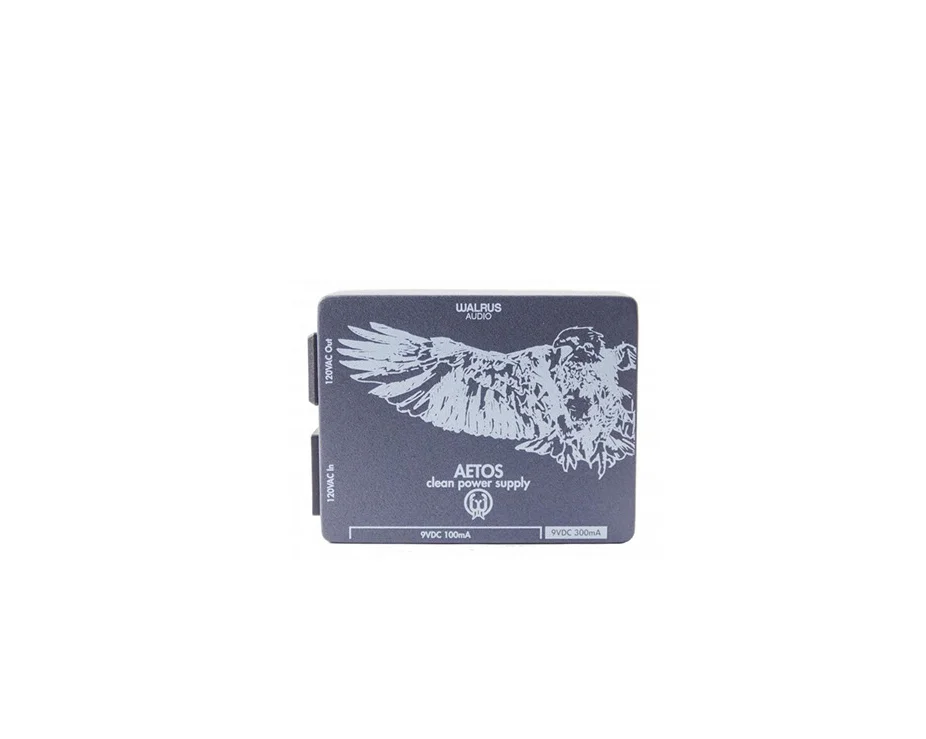

Aetos 120V Clean Power Supply
Easily attaches with Zipties to the Holeyboards. The Walrus Audio Aetos is an 8-output, isolated power supply, utilizing an internal custom wound toroidal transformer to provide the highest noise filtering and cleanest power, giving artists the purest sound in their signal chain.
The Aetos is housed in a solid die cast enclosure and is 4.7”longx 3.7” wide x 2” height andhas 8 total 9VDC outputs, 6 are 100mA and 2 outputs are high current outputs (300mA) for higher current drawing pedals like line 6 DL series modelers, the Boss Twin Series Pedals and many digital modulation pedals on the market.
- It comes with a detachable 120V AC Power cord and also has a 120VAC complimentary power output. This unit comes with 8 – 2.1mm barrel black power cables and 2 black-to-red (Line 6) power cables.
- Dimensions – 4.7”longx 3.7” wide x 2” height
- Weight – 3lbs.
- Input – 120VAC
- Output – 6 outputs – 9VDC (100mA), 2 outputs – 9VDC (250mA)
- Fully Isolated DC Power – (Toroidal transformer based supply)
- Items Included – (5 ft 120VAC detachable power cord, 8 – 2.1mm black power cables, 2 – 2.5mm to 2.1mm (red to black) line 6 cables)
- 5 year warranty
